EC console base style options

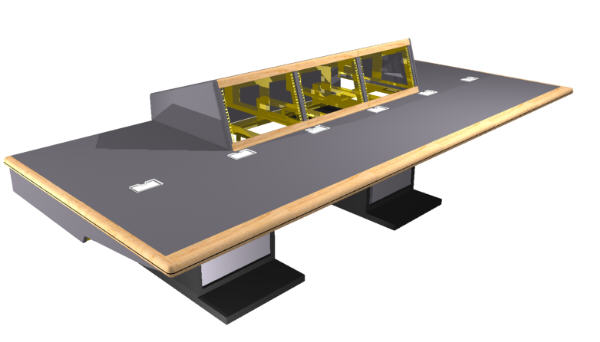

'EC Standard Base'

Features:

Various front depth desk options are available.
The rear worksurface is at the same level as front desk surface.
Rear panels may be replaced by 19" Rack modules positioned on 19" bay centres or offset by ½ bay.
Various leg style can be fitted.
Refer to 'Leg options' section of this catalogue for details.

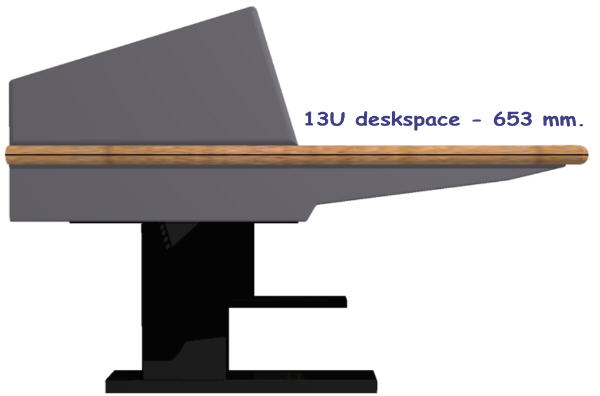

Reference: EC*-13

Standard base style desk with 13Ru (578mm) removable front desk panel.
Panel maybe cutout to take recessed equipment.

Overall depth 1357mm
Front depth including trim 653mm
Desk surface height 730mm

* Insert no. of bays length after 'EC' for complete Base Unit part code (ex legs)

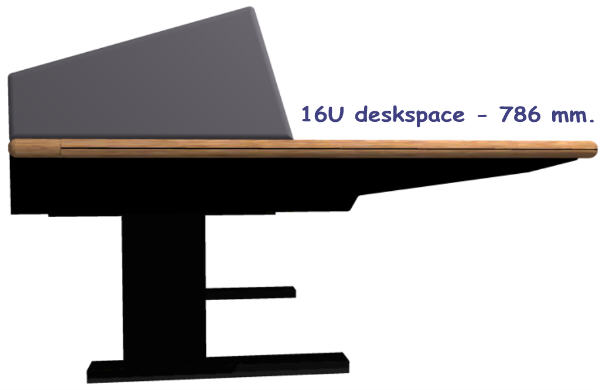

Reference: EC*-16

Standard base style desk with 10Ru (711mm) removable front desk panel.
Panel maybe cutout to take recessed equipment.

Overall depth 1491mm
Front depth including trim 786mm
Desk surface height 730mm

* Insert no. of bays length after 'EC' for complete Base Unit part code (ex legs)

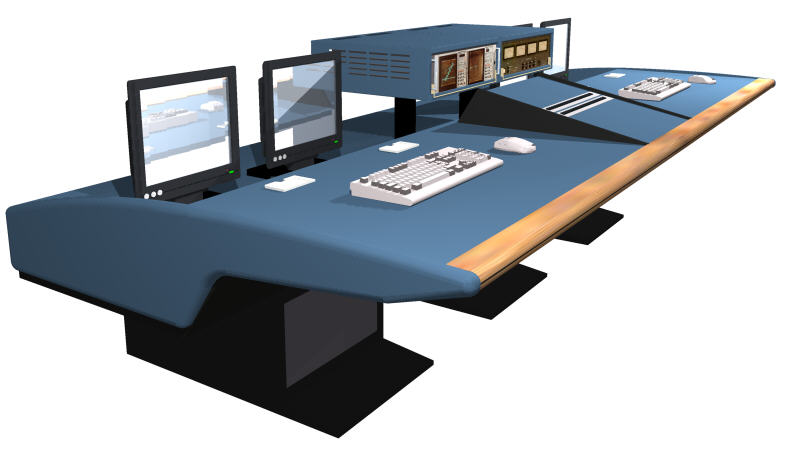

'EC Lo-Base'

Features:

Rear worksurface is lowered by 120mm.

Equipment and 19" Rack modules may be positioned anywhere along the length.
19" rack legs have 6Ru of rack space and upto 1 per bay section may be fitted.

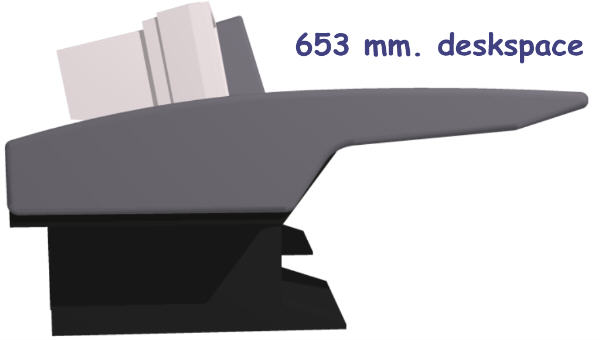

Reference EC*-13LB

'Lo-base' style desk with 13Ru (578mm) removable front desk panel.
Panel maybe cutout to take recessed equipment.

Overall depth 1365mm
Front depth including trim 653mm
Desk surface height 730mm

* Insert no. of bays length after 'EC' for complete Base Unit part code (ex legs)

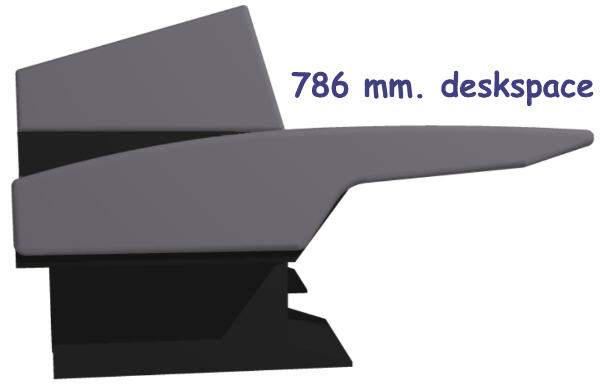

Reference EC*-16LB

'Lo-base' style desk with 16Ru (711mm) removable front desk panel.
Panel maybe cutout to take recessed equipment.

Overall depth 1499mm
Front depth including trim 786mm
Desk surface height 730mm

* Insert no. of bays length after 'EC' for complete Base Unit part code (ex legs)
