Modular Patchpanels up to cat 6

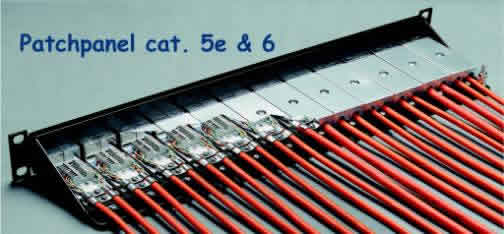

The 1U,  19” patchpanel 24 ports RJ45 cat 5e & 6 is made of 12 different separated and shielded modules, using the new RAPID CONTACT technology, that stands for high data transfer and space saving elements.

· 12 different shielded modules (for AGW 22 - 24 cables)
· You can work on 1 module while the other modules stay connected.
· Data interfaces upto cat 5e & cat 6
· Colour coding to TIA/EIA 568 A/B
· Connection made by insulation piercing
· Connection tool included (only with RAPID contact connectors, not with LSA)
· Circuits to ISO / IEC 11801 / EN501173
· Separate clip for cable shielding & strain relief
· ORDERING INFORMATION: (please specify, with RAPID CONTACT or LSA connectors)

RCT20018 modular shielded 24 port 19" patchpanel cat 5e black	142,70 €
RCT20016 modular shielded 24 port 19" patchpanel cat 5e grey	142,70 €
RCT20034 modular shielded 24 port 19" patchpanel cat 6 black	168,17 €
RCT20032 modular shielded 24 port 19" patchpanel cat 6 grey	168,17 €

list prices excl. VAT - ask discount - cheaper versions see compactpatchpanels

8 port, 16 port, 25 port & 50 port patchpanels are also available. available.
