As a standard, we
offer 7 types of XLR termination panels, wich are populated with the appropriate
Neutrik XLR connectors. Available in 1U, 2U and 3U high, manufactured
from aluminium extrusion and finished in Dawn Mist semi-gloss paint, the
panel assemblies are equipped with designation strips and lacing bars
for cable strain relief. Non-standard configurations
are available to special order.
|
|
Part Nr.
|
Description
|
Net price
in €
|
|
|
|
|
|
RTP-1F16
|
1 row 16
female XLR termination panel of 1 U
|
201,43 €
|
|
RTP-1M16
|
1 row 16
male XLR termination panel of 1 U
|
194,13 €
|
|
RTP-2F16
|
2 rows 16
female XLR termination panel of 2 U
|
344,32 €
|
|
RTP-2M16
|
2 rows 16
male XLR termination panel of 2 U
|
329,82 €
|
|
RTP-2X16
|
2 rows 16
male & 16 femaleXLR panel of 2 U
|
337,06 €
|
|
RTP-3F16
|
3 rows 16
female XLR termination panel of 2 U
|
474,96 €
|
|
RTP-3M16
|
3 rows 16
male XLR termination panel of 2 U
|
453,74 €
|

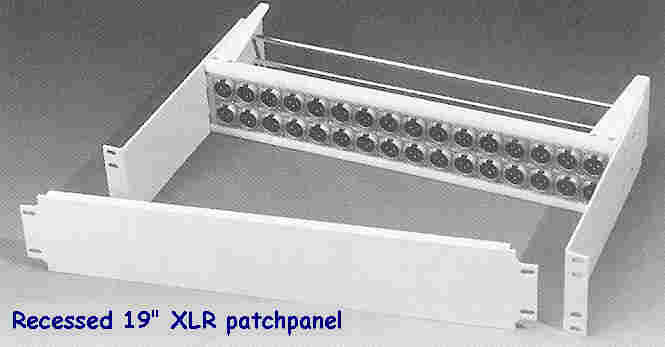

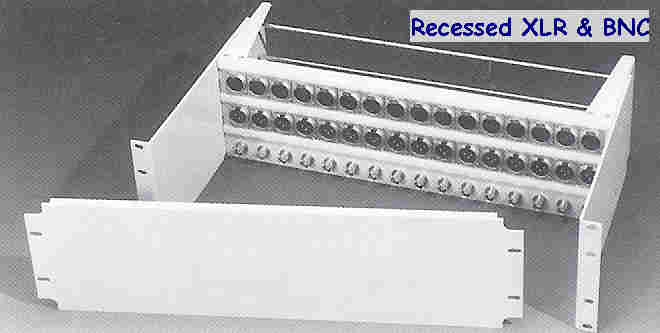

The recessed patchpanels
are recessed with 200 mm. and covered with a cover-protection frontplate
|
