Cablemanagement

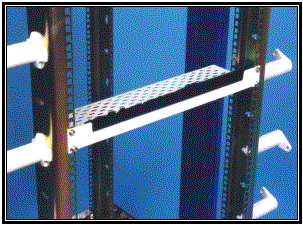

I. BRUSH 1U 19" CABLE ENTRY PANEL

Features:

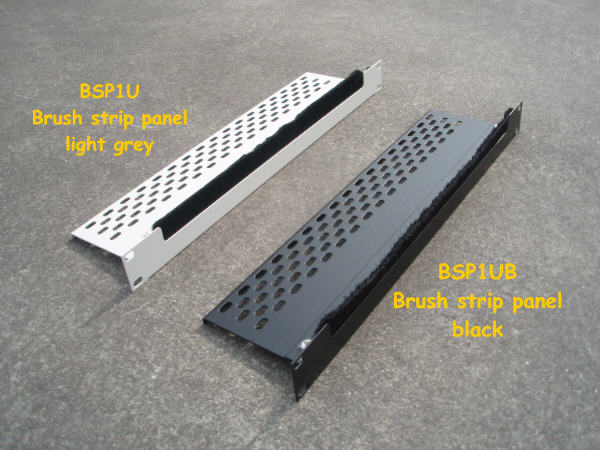

Ref. BSP1U in light grey at 23,64 €

Ref. BSP1UB in black colour at 33,64 €

Retro or Factory Fit
Brush Strip For Cable Entry
Conforms to IEC297 Standard
Slots at Rear For Cable Ties, 115 mm deep
Occupies Only 1U of Rack Space

Made in: 1.5mm Powder Coated Mild Steel

Suitable for all 19" racking systems

Brush strip cable management
REF	Description	Price (€)
ELD1-BS1W	1 U brush strip panel in white-grey colour	19,62 €
ELD1-BS1B	1 U brush strip panel in black colour	19,62 €

REF	Description	Price (€)

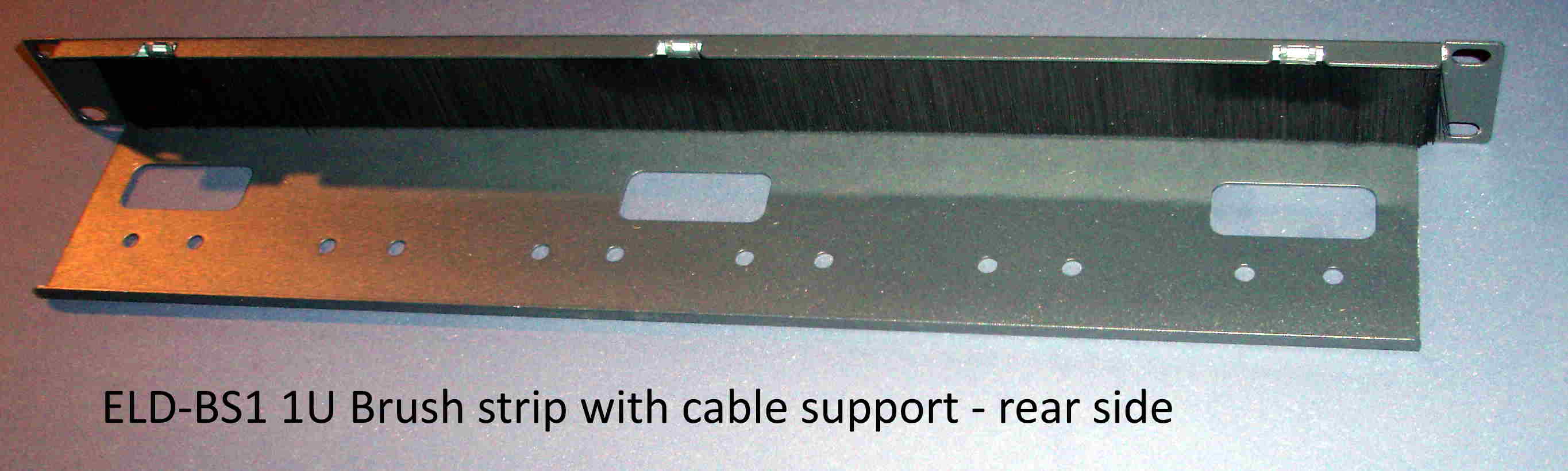

ELD1-BS1	1 U brush strip panel in black colour, with cable support of 80 mm deep, at rear	19,62 €

REF	Description	Price (€)

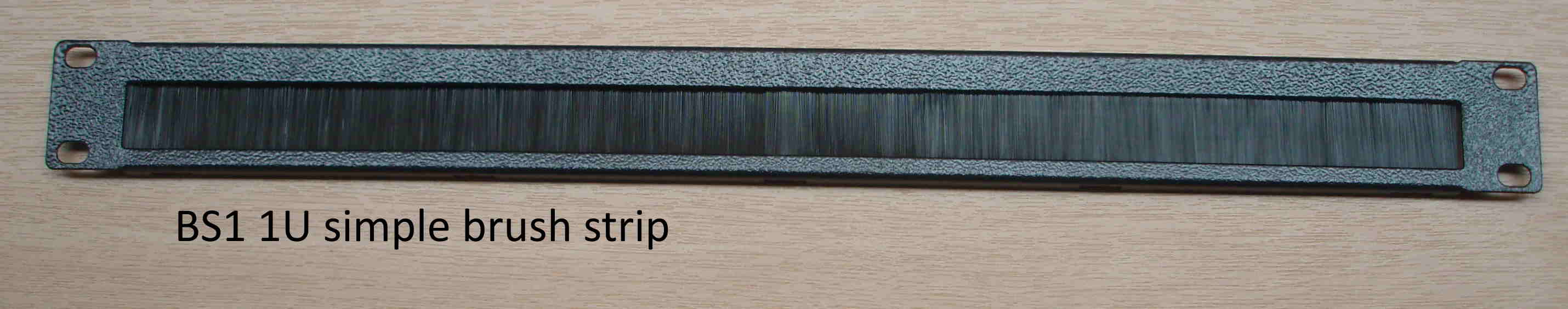

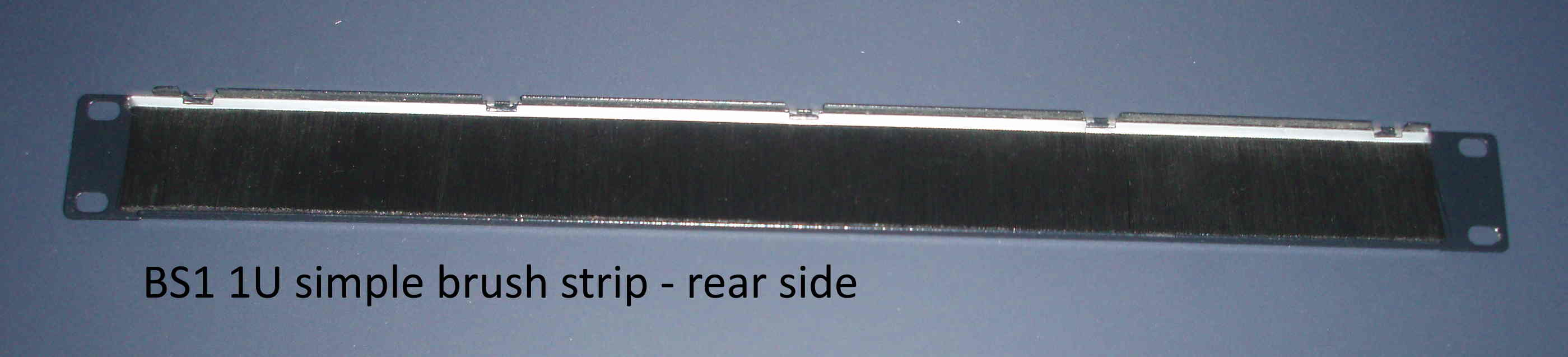

BS1	1 U simple brush strip panel in black colour	7,68 €

II. RACK CABLE MANAGEMENT - JUMPER RING PANELS - TWIST & LOCK PANELS - CABLE PANELS WITH REMOVABLE COVER

To compliment our racksystems, the unique Rack open frame, effective horizontal cable management remains a necessary element of any cabling system.

REF	Description	Price (€)

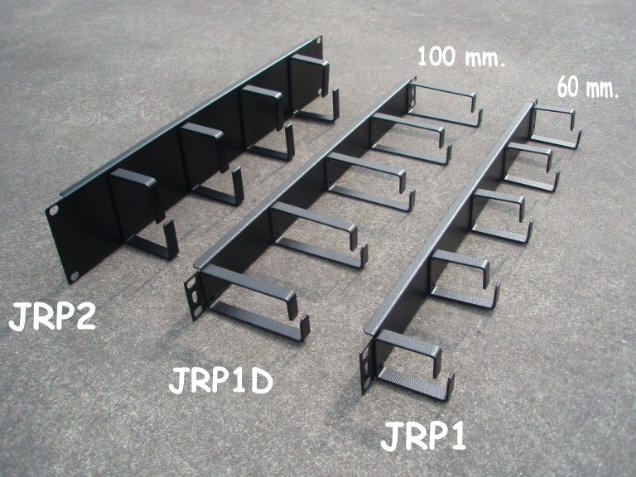

JRP1	1U jumper ring panel with 60 mm arms of steel, powder coated in black	29,10 €
JRP1D	1U jumper ring panel with 100 mm arms of steel, powder coated in black	29,10 €

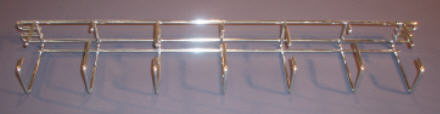

CBJRP1	1U cable basket panel with 7 ring arms	30,80 €
JRP2	2U jumper ring panel with 60 mm arms of steel, powder coated in black	39,42 €

Features:

Fits Directly To 19" Panel Mounts
Four Cable Loops Per Panel

Technical Overview

Panel - 1.5mm Mild Steel
Loops - 3.0mm Mild Steel
Finish - Black Powder Coated

2 U Twist & Lock panels

This 2U high panel incorporates up to 5 Twist & Lock cable management arms to provide horizontal cabling across the rack. The large diameter arms support the cables and also ensure the correct cable bend radius.

Ref. TLCMP2 at 54,48 €

REF	Description	Price (€)

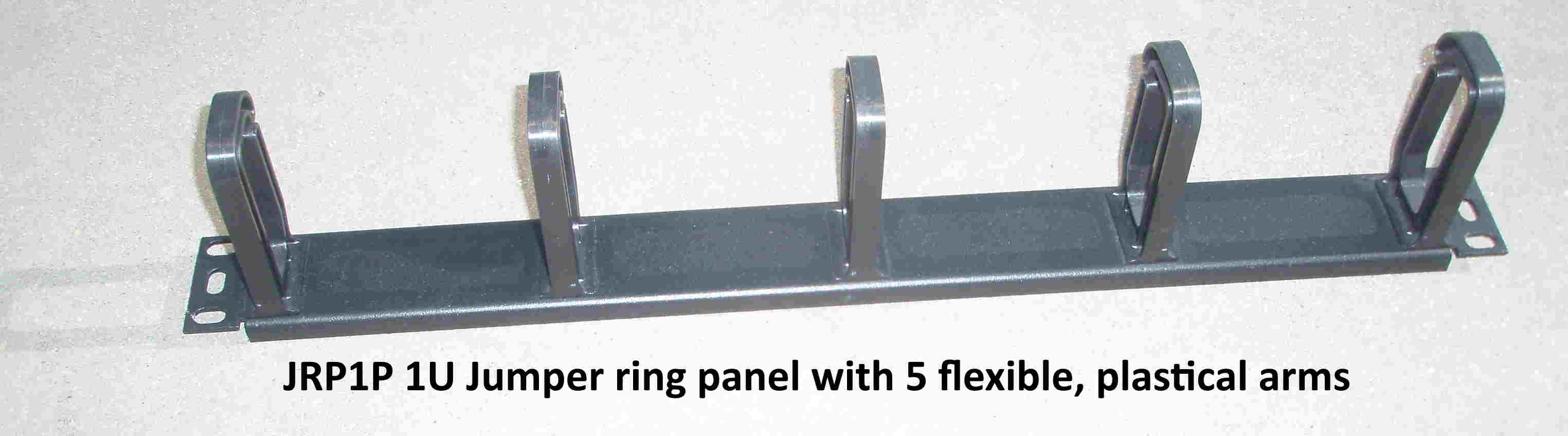

JRP1P	1 U Jumper ring panel with 5 flexible, plastical arms 80 mm deep	19,20 €

REF	Description	Price (€)
JRP1COVER	1 U horizontal cable channel with removable cover - 70 mm total depth	39,20 €

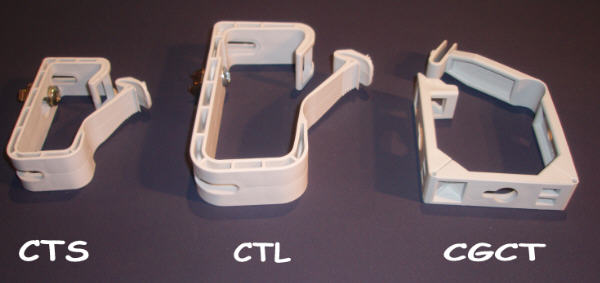

III. SINGLE CABLE HOOPS

These plastic cable hoops exist in 2 dimensions and can be used in racks as a cable channel
or on their own in many fixing locations.

CTL Large plastic cable hoop with a cable space inside of 45 x 100 mm at 7,69 €.

CTS Small plastic cable hoop with a cable space inside of 30 x 70 mm at 6,89 €.

CGCT3 Flexible cable Tidy of 75 mm x 75 mm x 22 mm at 4,70 €

IV. METAL CABLE HOOPS

Designed to maximise cable management facilities within a 600 mm. wide.
Fits directly onto ACCESS rack 19" mounting angle.
Can be fitted every 1U if required.
Does not compromise your 19" mounting facilities

ACH6 5 mm thick zink platted and silver passivated metal cable hoop at 17,33 €

Designed to maximise cable management facilities within a 800 mm. wide.
Fits directly onto ACCESS rack 19" mounting angle.
Can be fitted every 1U if required.
Does not compromise your 19" mounting facilities

ACH8 5 mm thick zink platted and silver passivated metal cable hoop at 18,08 €

V. METAL CABLE TRAYS & CABLE BASKET TRUNKING

cabletray

REF	Description	Price (€)

ACTR22	22U x 75mm Cable Tray	25,27
ACTR27	27U x 75mm Cable Tray	27,44
ACTR32	32U x 75mm Cable Tray	32,08
ACTR39	39U x 75mm Cable Tray	34,62
ACTR42	42U x 75mm Cable Tray	35,85
ACTR47	47U x 75mm Cable Tray	41,10
ACTRW22	22U X 150mm Cable Tray	33,58
ACTRW27	27U x 150mm Cable Tray	36,42
ACTRW32	32U x 150mm Cable Tray	42,83
ACTRW39	39U x 150mm Cable Tray	58,87
ACTRW42	42U x 150mm Cable Tray	61,46
ACTRW47	47U x 150mm Cable Tray	67,79

trunking

REF	Description	Price (€)

ABS2215	Cable Basket Trunking 22U x 150mm Wide	42,42
ABS2715	Cable Basket Trunking 27U x 150mm Wide	42,24
ABS3215	Cable Basket Trunking 32U x 150mm Wide	42,89
ABS3915	Cable Basket Trunking 39U x 150mm Wide	84,49
ABS4215	Cable Basket Trunking 42U x 150mm Wide	85,83
ABS4715	Cable Basket Trunking 47U x 150mm Wide	87,17
ABS2230	Cable Basket Trunking 22U x 300mm Wide	66,77
ABS2730	Cable Basket Trunking 27U x 300mm Wide	66,46
ABS3230	Cable Basket Trunking 32U x 300mm Wide	67,47
ABS3930	Cable Basket Trunking 39U x 300mm Wide	132,95
ABS4230	Cable Basket Trunking 42U x 300mm Wide	134,53
ABS4730	Cable Basket Trunking 47U x 300mm Wide	136,10

VI. 19" RECESS MOUNTS

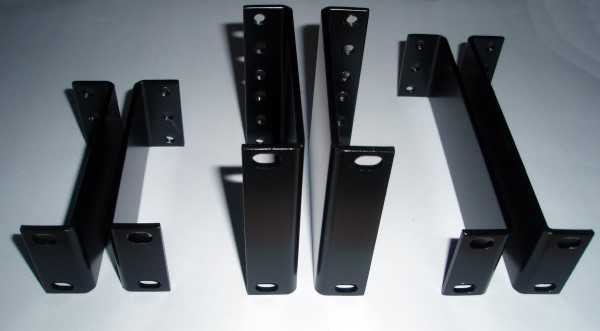

These Panel Recess Adaptors allow standard, flat, 19 inch panels to be recessed within a rack. They are available in eight different heights from 1U to 12U and three depths, 100mm, 150mm and 200mm. The rear of the brackets have M6 fixing holes for every U position to allow one kit to cater for a number of panels.
This is used to recess patch panels and to create space for the patch cords and also to hide the patch cords.

Only 3 recess mounts are stock items and delivered by pair:

REF	Description	Price (€)

RPA10001B	1U Recess mount 100 mm deep, powder coated in black	47,37
RPA10002B	2U Recess mount 100 mm deep, powder coated in black	56,17
RPA15001B	1U Recess mount 150 mm deep, powder coated in black	53,80

**19" CABLE MANAGEMENT*list prices excl. VAT - ask discount***

I. BRUSH 1U 19" CABLE ENTRY PANEL

Brush strip cable management

II. RACK CABLE MANAGEMENT - JUMPER RING PANELS - TWIST & LOCK PANELS - CABLE PANELS WITH REMOVABLE COVER

2 U Twist & Lock panels

III. SINGLE CABLE HOOPS

IV. METAL CABLE HOOPS

V. METAL CABLE TRAYS & CABLE BASKET TRUNKING

VI. 19" RECESS MOUNTS

Only 3 recess mounts are stock items and delivered by pair:

VII. CABLE TIE STRAPS

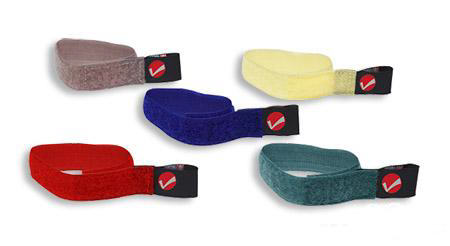

C518260 set of 5 coloured 'VELCRO' cable tie straps.
